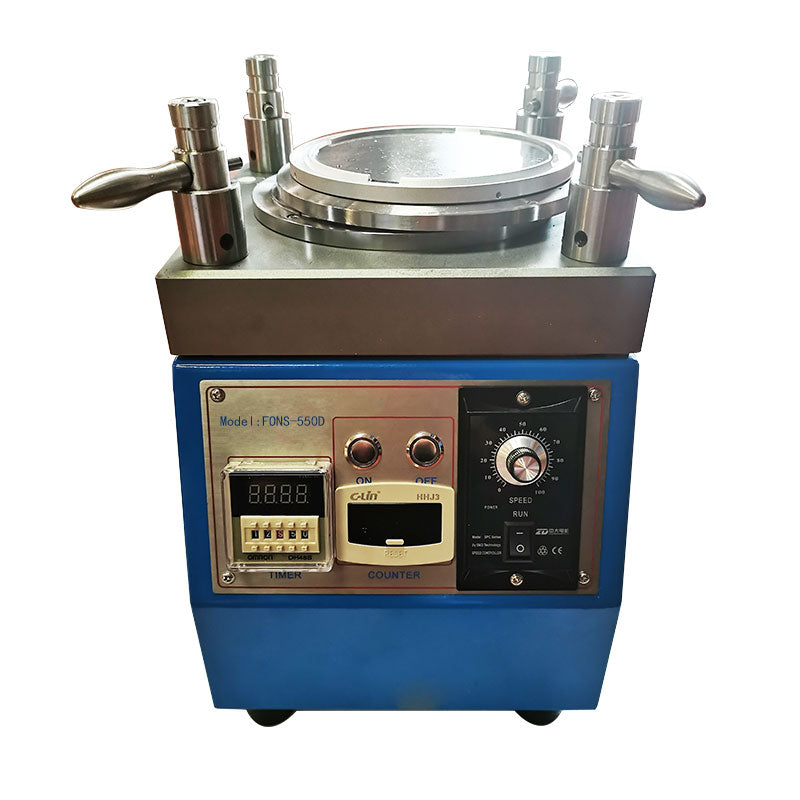

FONS-550D Production Fiber Polishing Machine


Save $363

Price:
$1,815 $2,178

Description

Fiber Polishing Machine parameters: Corners pressing (4 Coil Springs) Polishing head count (Polishing capacity): 18 head / 20/24/48/60 Power (Input): 220V (AC), 50Hz Power & Power): 80W polishing Timing (Timer): Omron rotary / button digital timer, arbitrary timing Dimension (Dimension): 280mmΧ220mmΧ270mm Electrical motors: Germany JSCC motor Fit Φ2.5mm PC, APC: FC, SC, ST Φ1.25mmPC, APC: LC, MU MT, mini-MT, MT-RJ PC, APC: MPO, MTP, MPX

Advantages of this Optical polisher: Use / Productivity Suitable for a variety of fiber optic connectors polishing, it can also be used for special Device polishing / polishing By replacing polishing sandpaper, a machine can be completed independently connected End face polishing, can also be multiple machines by the step of forming production line Output: 800 / Taiwan, 4 grinder can organize large-scale Connector production line Operation / control Pressure adjustable, single ferrule independent pressure polishing results are not Pin length effect, 3D interference pass rate, pass rate of 95% Simple operation, more than one machine According to need, arbitrary timing Universal / interchangeability And domestic and foreign same series fixtures, polishing pad, polishing sandpaper General The machine has 25 models to choose fixtures In addition to ceramics, but also polishing quartz, glass, metal, plastic and other materials Reliability / accuracy High quality special metal materials, high-precision processing equipment manufacturers, the key parts are made of special heat treatment process, Selection of imported components, keys / motor filtered through the aging Adjusted core parts precision fixed, long-term stability After reliability test machine.
